Custom Actor Trailers

The specs below provide a sample of what is possible. For pricing and configuration options please contact us today.

Customizable & Built To Order

Sinemax actor trailers are designed for both convenience and utility. These custom-built units are built to spec and can range in size, number of rooms, slides, washroom facilities, and more.

Our North American based production facilities are world-class and units can be shipped both nationwide and internationally.

If you have questions, we encourage you to click the link below to fill out our inquiry form to request more information or an estimate.

  Request Information     1 (905) 328-1021

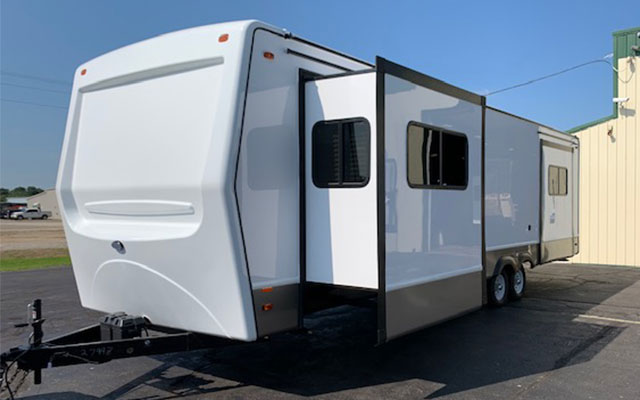

Custom Actor Trailer

Standard Construction Features

The following options are included standard with every custom Sinemax Production Trailer.

  • Heavy duty 10”/ 12” I-Beam chassis frame
  • “A” frame tongue with 2 5/16 Ball connection
  • Floor joists at 16” O.C. or better
  • Spring axle sized per model
  • Electric brakes on all wheels
  • Safety chains for connection to tow vehicle
  • 4x4 Hand crank heavy duty hitch jack with foot pad
  • White modular steel rims
  • 16” radial tires sized to floor plan
  • Fold out entrance steps- Triple nine
  • Rear “C” steel bumper - where applicable
  • Plywood floor decking
  • Two scissor style stabilizer jacks at front of trailer
  • Two scissor style stabilizer jacks 24” from rear of trailer
  • Safety break away switch for tow vehicle
  • 7-Pin round RV Style bargsman truck cord
  • Fully Insulated walls & roof
  • Rolled Vinyl floor covering
  • Designer Interior bright wall paneling with trim
  • One Deep cycle 12 volt battery in case
  • Battery shutoff switch near electric panel
  • Exterior LED running lights
  • US & Canadian approved exterior tail/brake lights
  • Exterior high quality gelcoat fiberglass wall
  • 90” sidewall/ceiling height
  • Flat front profile
  • Bowed truss rafters & solid construction walkable roof
  • All weather membrane roofing w/12 year warranty
  • 12V on demand water pump
  • Front Tongue Light with switch on light
  • Exterior Porch light by each entrance door
  • Porch lights wired together to master switch in mech box
  • One roof mounted TV antenna
  • Ext. 110V screw on shoreline power cord
  • 110V to 12V electrical converter w/ battery trickle charger
  • Switches for water pump & water heater in ext. storage
  • Exterior electrical receipt on door side
  • Wired for 110v with interior receipts
  • Interior 12Volt LED lights in ceiling
  • Exterior swing out black grab handle by entrance door
  • Exterior Bottom Skirting wrap
  • Radius Tinted Windows - Where Applicable
  • Radius Entrance Doors w/ Frosted Glass
  • Diamond plate on front steel cross member
